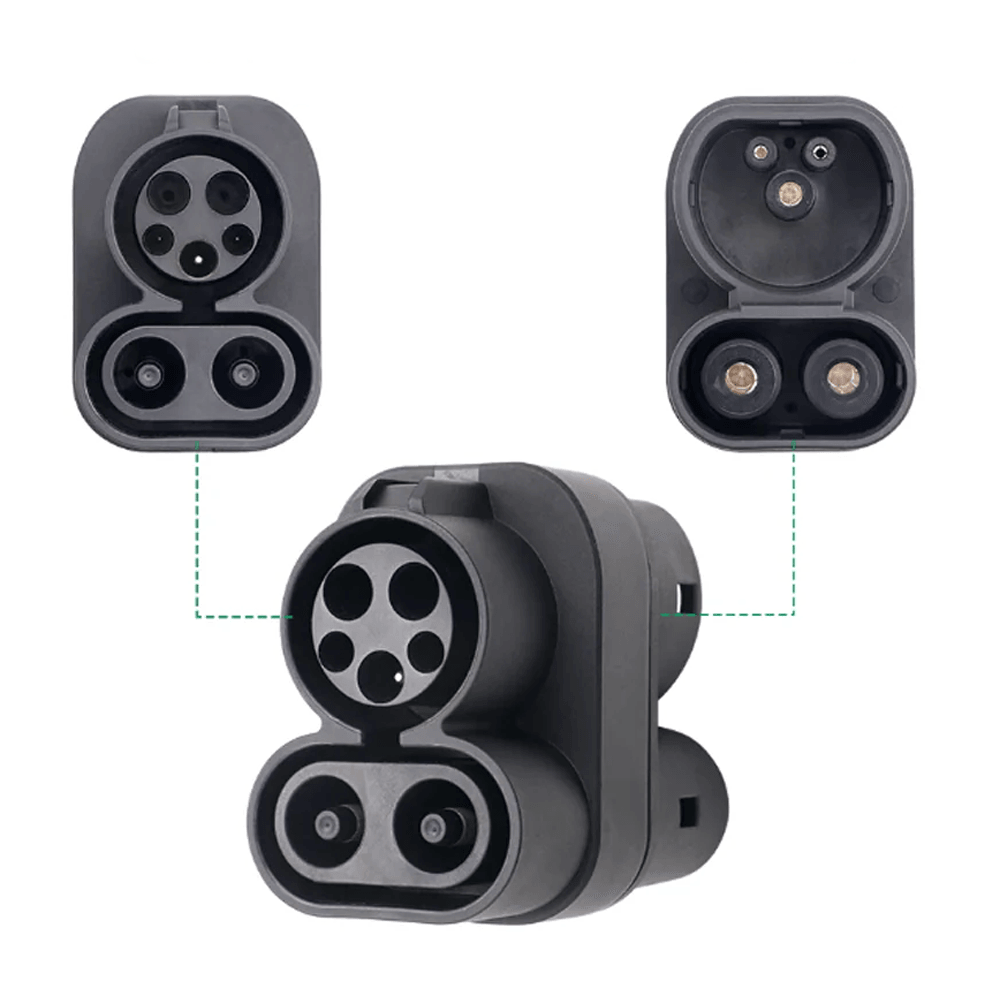

The EV Charger Adapter CCS1 to CCS2 is the perfect solution for seamless charging compatibility between electric vehicles with CCS2 plugs and charging stations equipped with CCS1 connectors. This adapter ensures efficient and reliable charging, meeting the highest safety and performance standards.
Key Features:
Specifications:
Item | CCS1 To CCS2 |
Rated Operating Current | 300A |
Operation Voltage | 500V-1000V(DC) |
Insulation Resistance | >1000MΩ(DC500V) |
Withstand Voltage | 2000V/1min |
Contact Resistance | 0.5mΩ Max |
Terminal Temperature Rise | <50K |
Operating Temperature | -40℃⁓+85℃ |
Impact Insertion Force | 45N<F<80N |
Mechanical Life | >10000 times |
Waterproof Degree | IP55 |
Flame Retardant Grade | UL94 V-0 |
Certification | CE FCC ROHS |
